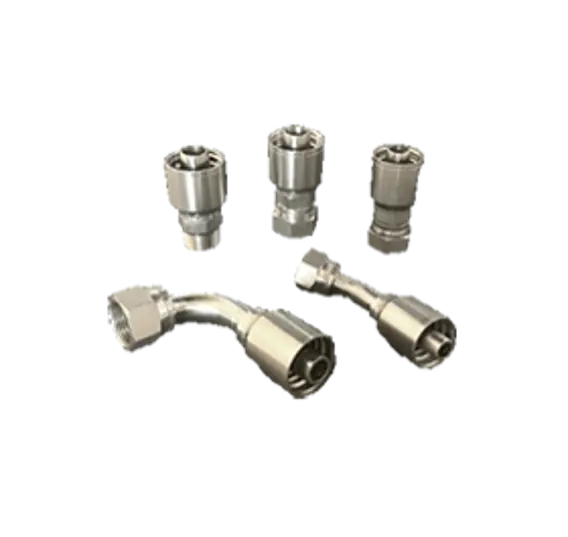

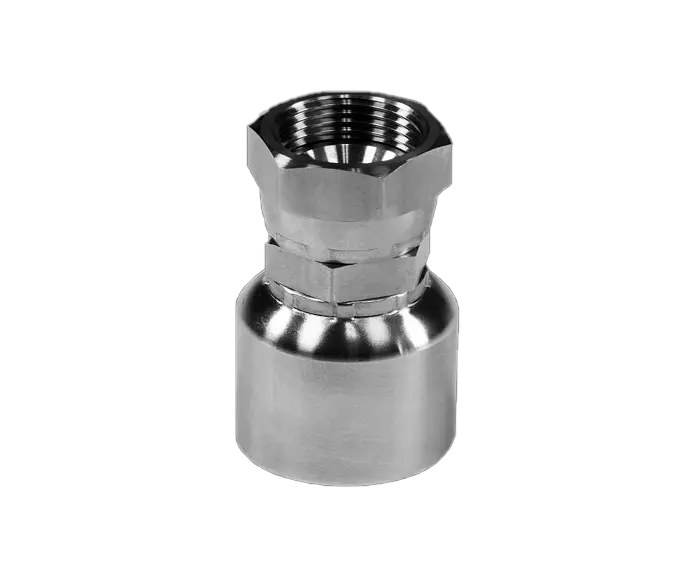

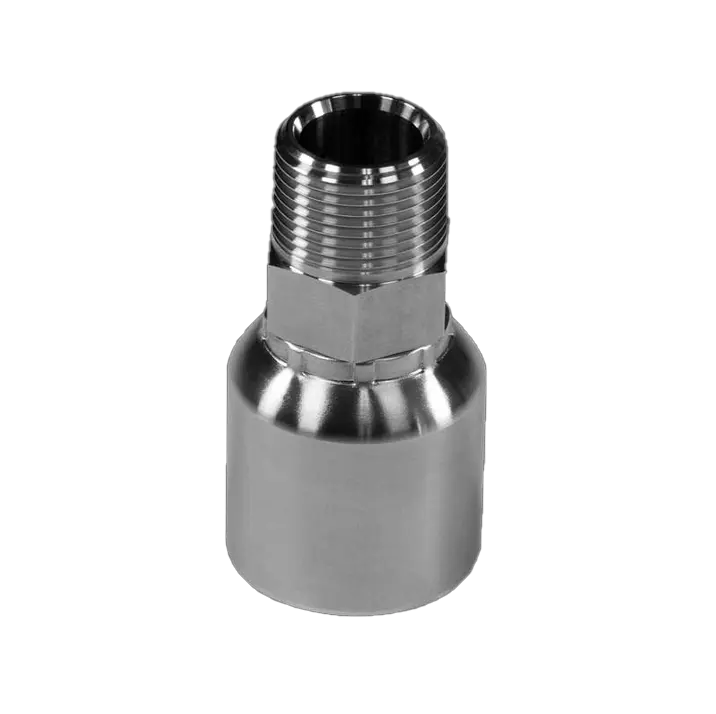

MW series fittings are the most popular PBH hose fittings designed for use with PBH’s 1-wire and 2-wire hoses. MW series popularity is due to both their compatibility with the largest number of PBH hoses, and the best selection of shapes and thread configurations.
MW series fittings can be identified by the 2 lines located on the ferrule. When making hose assemblies using MW series fittings, make sure that the hose you are using is designed to work with the MW series hose fittings.

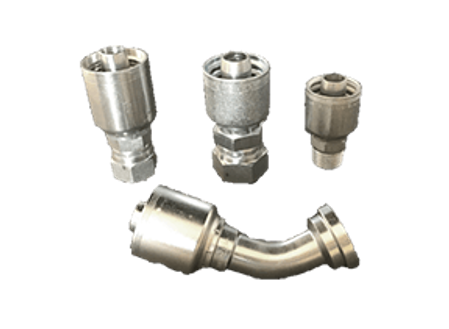

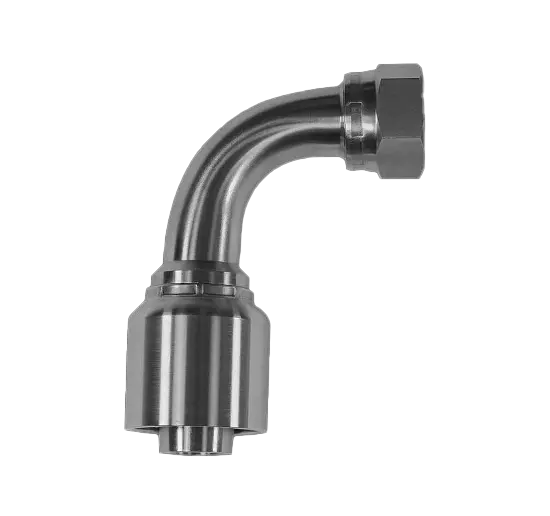

MS series fittings have a strong structure designed for surge pressures and spikes, high impulses, and vibration (4 spiral). They also have great resistance to fatigue. These heavy-duty fittings are used for industrial and mobile hydraulics. They are ideal for construction, mining, petroleum, and earthmoving equipment.
MS series fittings can be identified by the 4 lines located on the ferrule. When making hose assemblies using MS series fittings, make sure that the hose you are using is designed to work with the MS series hose fittings.

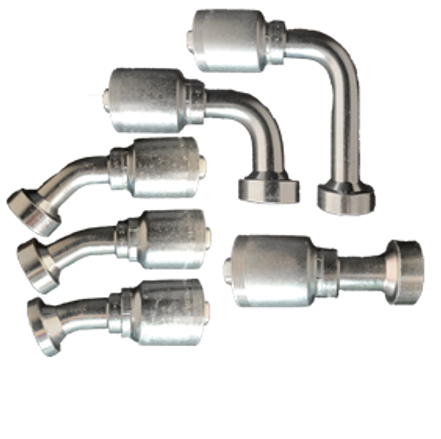

PBH’s HS series fittings have a strong structure designed for extreme pressures and spikes, high impulses and vibration(4 and 6 spiral).
They also have extraordinary resistance to fatigue. These extreme duty fittings are used for industrial and mobile hydraulics. They are ideal for construction, mining, petroleum, and earthmoving equipment.
HS series fittings can be identified by the 6 lines located on the ferrule. When making hose assemblies using HS series fittings, make sure that the hose you are using is designed to work with the HS series hose fittings.
Thread options: Code 61, Code 62, CAT, FJX and ORFS.

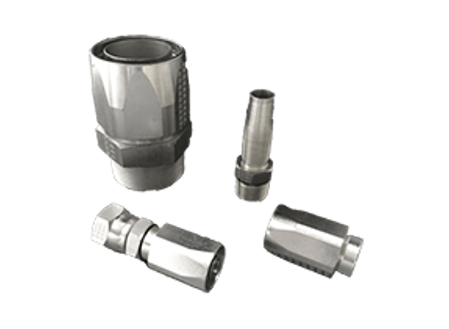

Reusable RU Series fittings are an excellent choice for emergency repairs.
Assembly can be accomplished with hand wrenches; there is no crimper required. Properly assembled, a hose with reusable fittings will meet all applicable SAE specifications.
When making hose assemblies using reusable series fittings, make sure that the hose you are using is designed to work with the reusable series hose fittings (100R2AT or 100R5).
