Hydraulic Cylinders

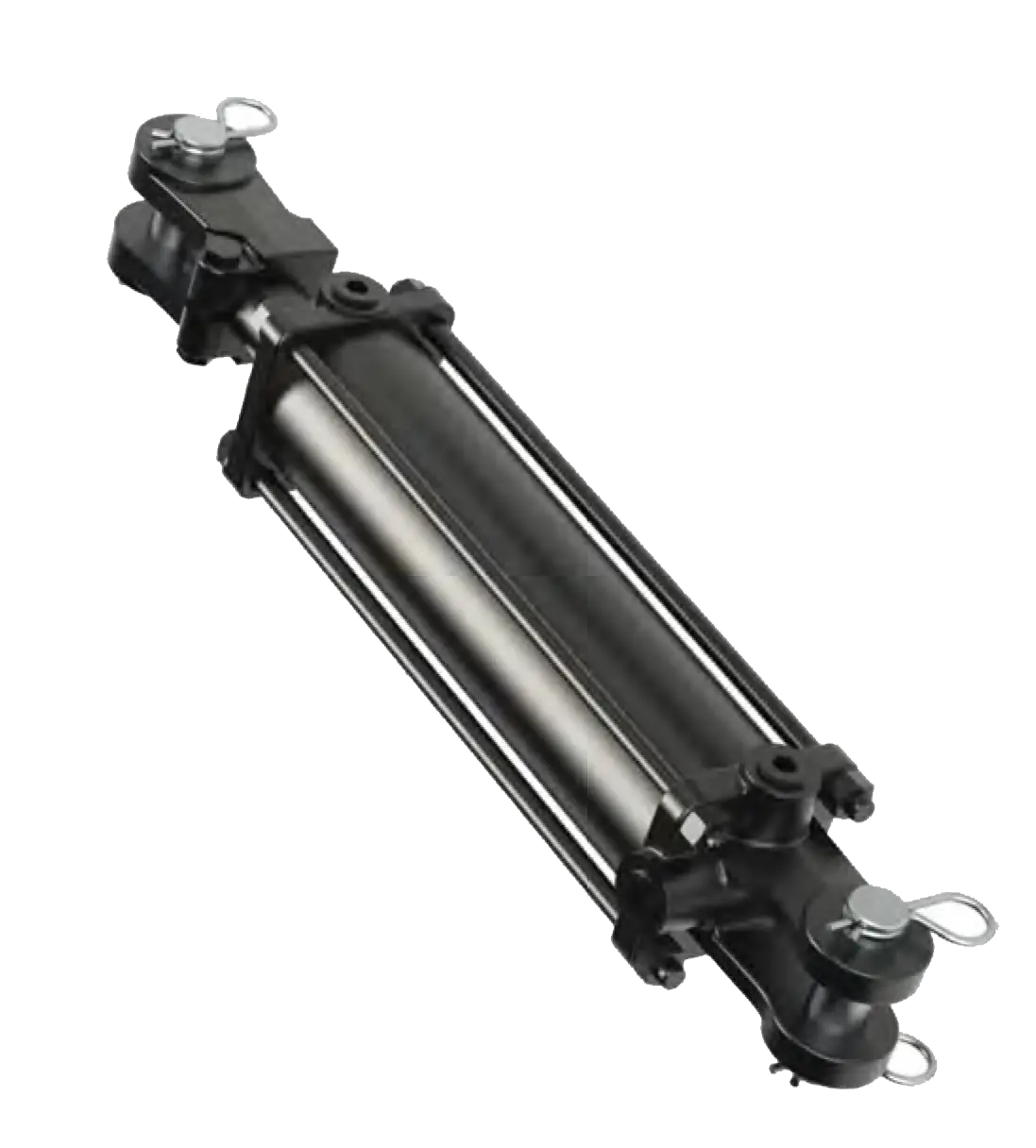

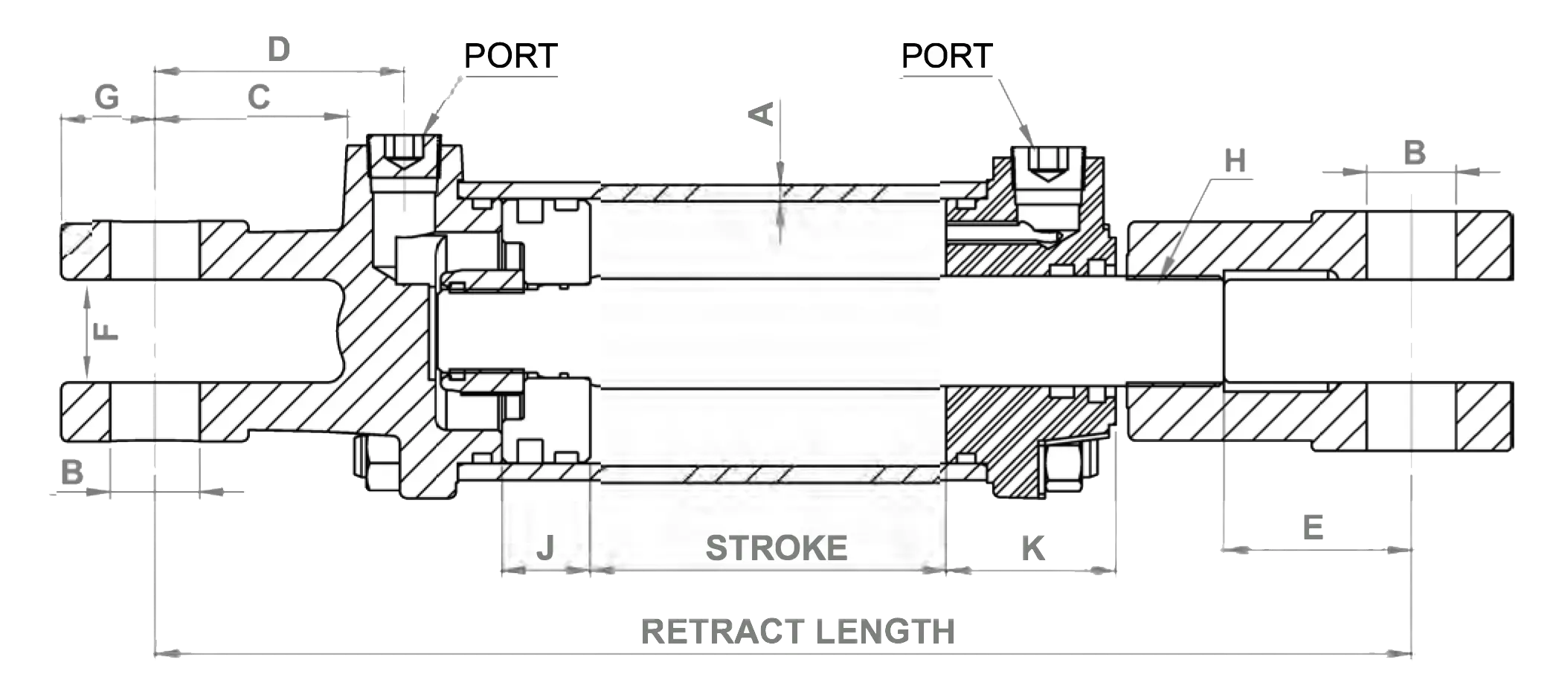

Double Acting Tie Rod Cylinders 3000 PSI
Honed steel tube with precision finish.
Hard chromed, grounded and polished piston rod.
Ductile cast iron clevises with Pins & R-clip included.
Rod seal: Double lip polyurethane seal.
Piston seal: polyurethane seal with 70A wear ring.
Rod Wiper: Heavy duty metal canned wiper.
Port: SAE o-ring.
Product dimensions are in inches.
Paint colour Black
Product Code
Bore
Stroke
Rod Dia
Retract Length
WT
Port
2" Bore
PBTR-2004
2.0
04
1.125
14.25
18
#8 3/4-16 UNF
PBTR-2006
2.0
06
1.125
16.25
19
#8 3/4-16 UNF
PBTR-2008
2.0
08
1.125
18.25
20
#8 3/4-16 UNF
PBTR-2008A
2.0
08
1.125
20.25
22
#8 3/4-16 UNF
PBTR-2010
2.0
10
1.125
20.25
23
#8 3/4-16 UNF
PBTR-2012
2.0
12
1.125
22.25
25
#8 3/4-16 UNF
PBTR-2014
2.0
14
1.125
24.25
26
#8 3/4-16 UNF
Inquire Now

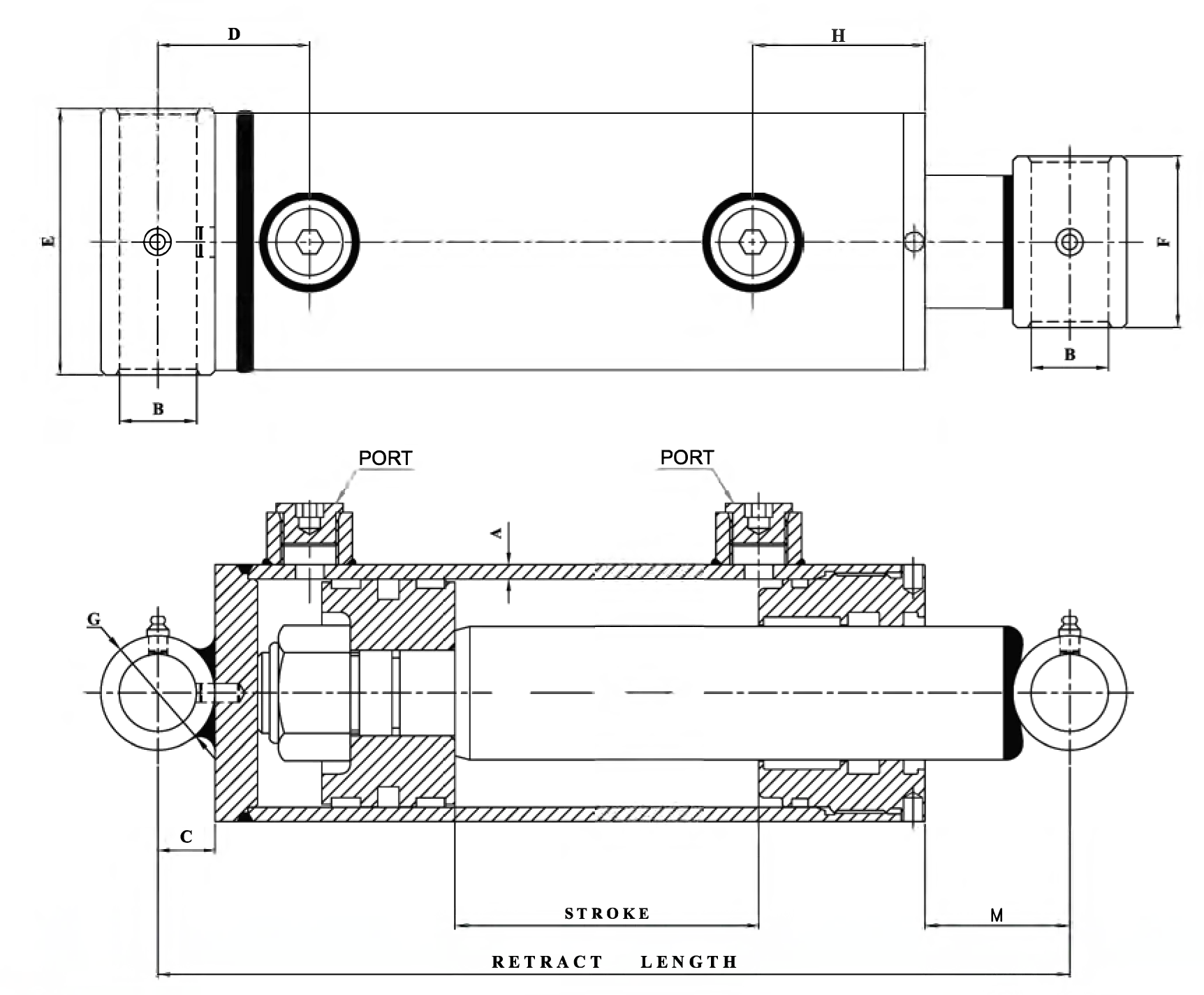

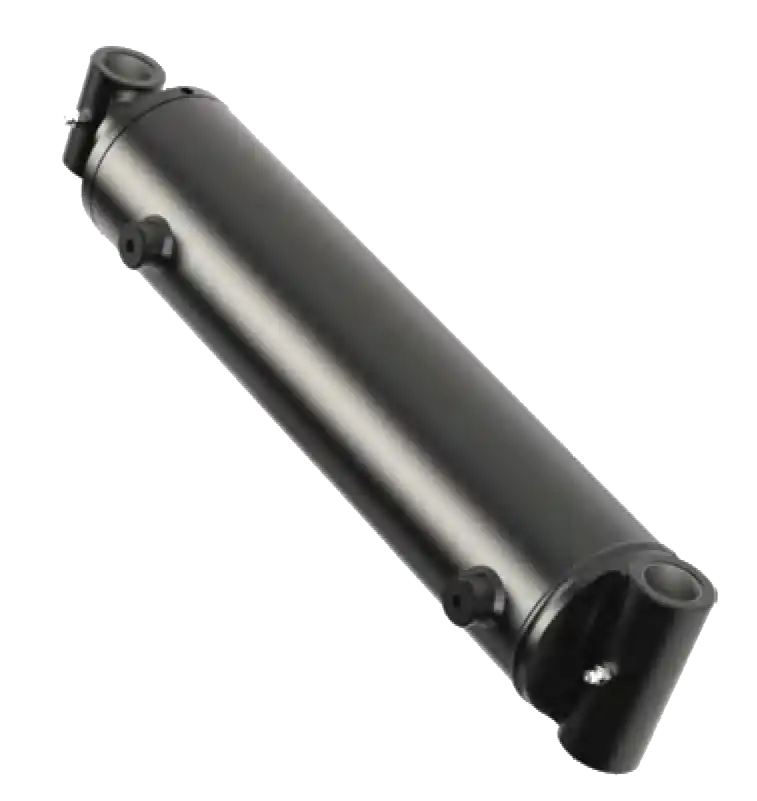

Welded, Double Acting, 3000 PSI
Honed steel tube with precision finish.
Hard chromed, grounded and polished piston rod.
Ductile cast iron clevis and forged bottom, Pins & R-clip included.
Rod seal: Double lip polyurethane seal
Piston seal: polyurethane seal with 70A wear ring.
Rod Wiper: Heavy duty metal canned wiper.
Port: SAE 0-Ring / NPT also available on request.
Product dimensions are in inches.
Paint colour Black
Product Code
Bore
Stroke
Rod Dia
Retract Length
WT
Port
1.5" Bore
PBWT-1504
1.5
04
0.75
12.00
10
#4 7/16-20 UNF
PBWT-1506
1.5
06
0.75
14.00
11
#4 7/16-20 UNF
PBWT-1508
1.5
08
0.75
16.00
12
#4 7/16-20 UNF
PBWT-1508A
1.5
08
0.75
18.00
14
#4 7/16-20 UNF
PBWT-1510
1.5
10
0.75
20.00
15
#4 7/16-20 UNF
PBWT-1512
1.5
12
0.75
22.00
16
#4 7/16-20 UNF
PBWT-1514
1.5
14
0.75
24.00
17
#4 7/16-20 UNF
Inquire Now
